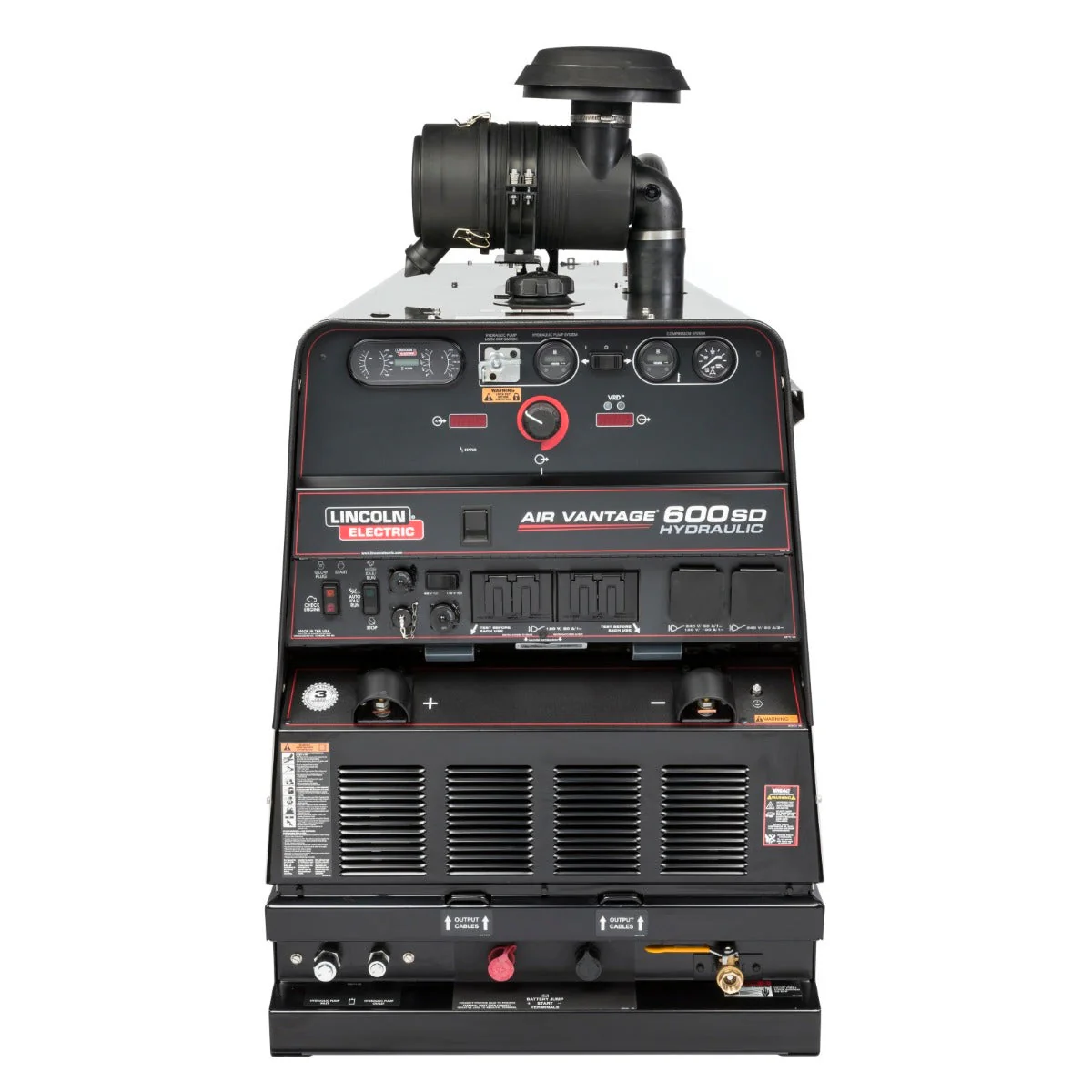

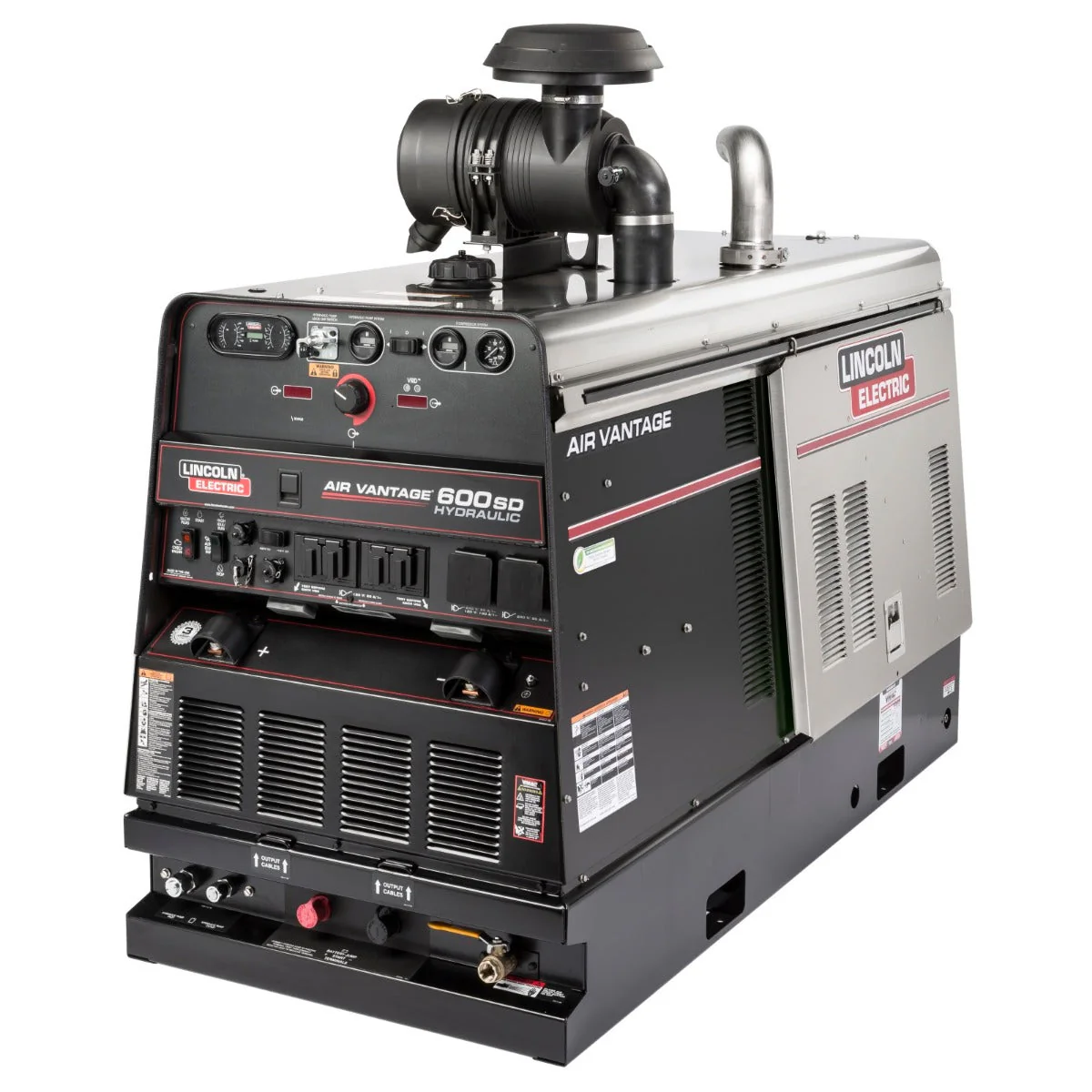

The Lincoln Air Vantage 566 hydraulic welder/generator is the first 600 amp welder of its kind. This generator combines a powerful 600 amp welder, 20,000 watt continuous AC generator, 60 CFM air compressor, and 10 GPM hydraulic pump. This generator is ideal for heavy equipment, railroad, and utility repair. The Vantage comes with a 65 HP Deutz Tier 4 Final compliant diesel engine to deliver the cleanest fuel emissions possible.

Quick Specs
• Duty Cycle: 60% @ 600A | 100% @ 525A
• DC Amperage Range: 30-600A CC/CV | 20-350A GTAW
• Continuous AC Power: 12,000 W 1-Phase | 20,000 W 3-Phase
• Dimensions: 69"L x 32.9"W x 42"H
• Weight: 1800 lbs

Engine Specs
• Model: Deutz TD2.9L4 Diesel
• RPM Speed: 1800 High | 1525 Low
• Starting: 12VDC Battery/Starter w/Automatic Glow Plugs
• Fuel Capacity: 25 Gal
• Oil Capacity: 2.25 Gal

Air Compressor Specs
• Model: VMAC S700162
• Delivery: 60 CFM @ 100 PSI
• Max Pressure: 150 PSI
• Protection: Safety Relief Valve (200 PSI)
• Capacity: 1.1 Gal

Hydraulic Pump Specs
• Model: Casappa PHP20
• Description: Belt-Driven Cast Iron Gear Pump | 12V Electro-Clutch
• Output: 10 Gal/Min @ 3000 PSI
• Inlet Fitting: SAE12, 37 Degrees, JIC Male Flare
• Outlet Fitting: SAE10, 37 Degrees JIC Male Flare
