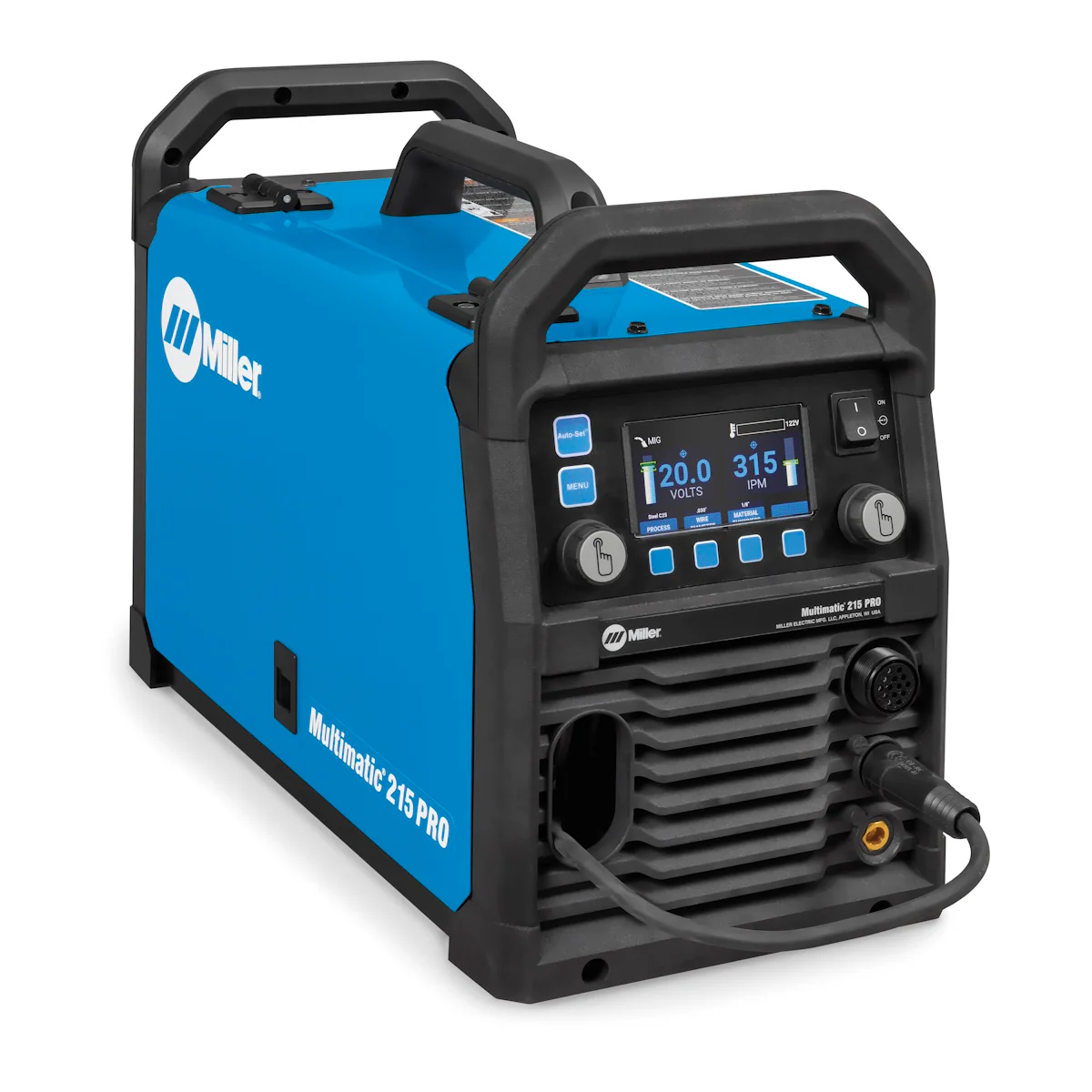

The Miller Multimatic 215 PRO multiprocess welder now comes with a 15-foot MDX 100 MIG gun, a higher 60% duty cycle, and Auto-Set™ technology for all weld processes. The Multimatic 215 PRO weighs 35 lbs and is compatible with 3/8" MIG and DC Stick, as well as 1/4" TIG welding.

All-in-One Multiprocess Welding Capabilities

This all-in-one welder handles multiple processes, including MIG, flux-cored, DC stick, and DC TIG welding (DC TIG welding of aluminum is not supported). Designed for use with various materials, this multiprocess welder helps users build skills while delivering professional-grade results.

Auto-Set™ with Fine-Tune Control

Available for all processes, including MIG, flux-cored, DC TIG, and DC stick, Auto-Set™. The Miller 215 Pro offers quick, predefined settings for material thickness, wire type, and travel speeds, along with the ability to fine-tune your settings for arc length, amperage, and weld preference.

Gas Detect™ with Dual Gas Connections

Gas Detect ensures reliable welds by detecting the presence of shielding gas, which monitors gas connections, displays alerts for supply issues, and purges the line during startup. Two gas connections and a dual solenoid system allow MIG and TIG gases to remain connected, eliminating downtime when switching processes.

Continually Upgradeable Machine

SB-upgradeable software allows expandable welding equipment capabilities without mechanical modifications, ensuring this machine evolves as your needs grow. This long-lasting Miller welder is designed to last for generations, continuing a legacy of American-engineered quality and dependable performance.

Smooth-Start™ for Spatter-Free Welds

Boasting the best-starting machine in the small multiprocess machine category, the 215 Pro delivers a highly forgiving, spatter-free start, improving arc stability on mild steel, flux-cored wire, and solid wire applications.

Dual Solenoid

With the Miller Multimatic 215 multiprocess welder, you can leave your gases for both MIG and TIG processes hooked up, allowing you to switch between the two easily.

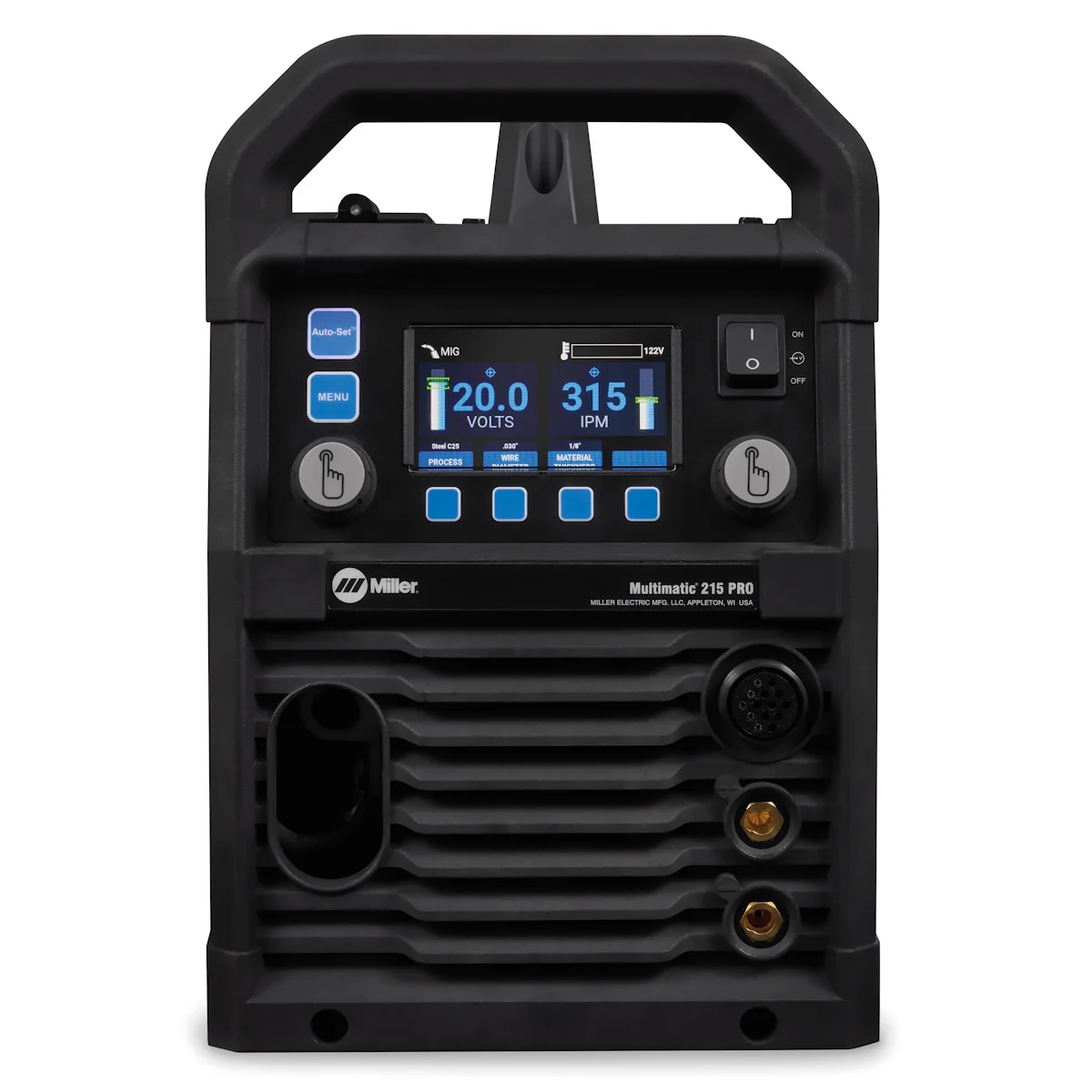

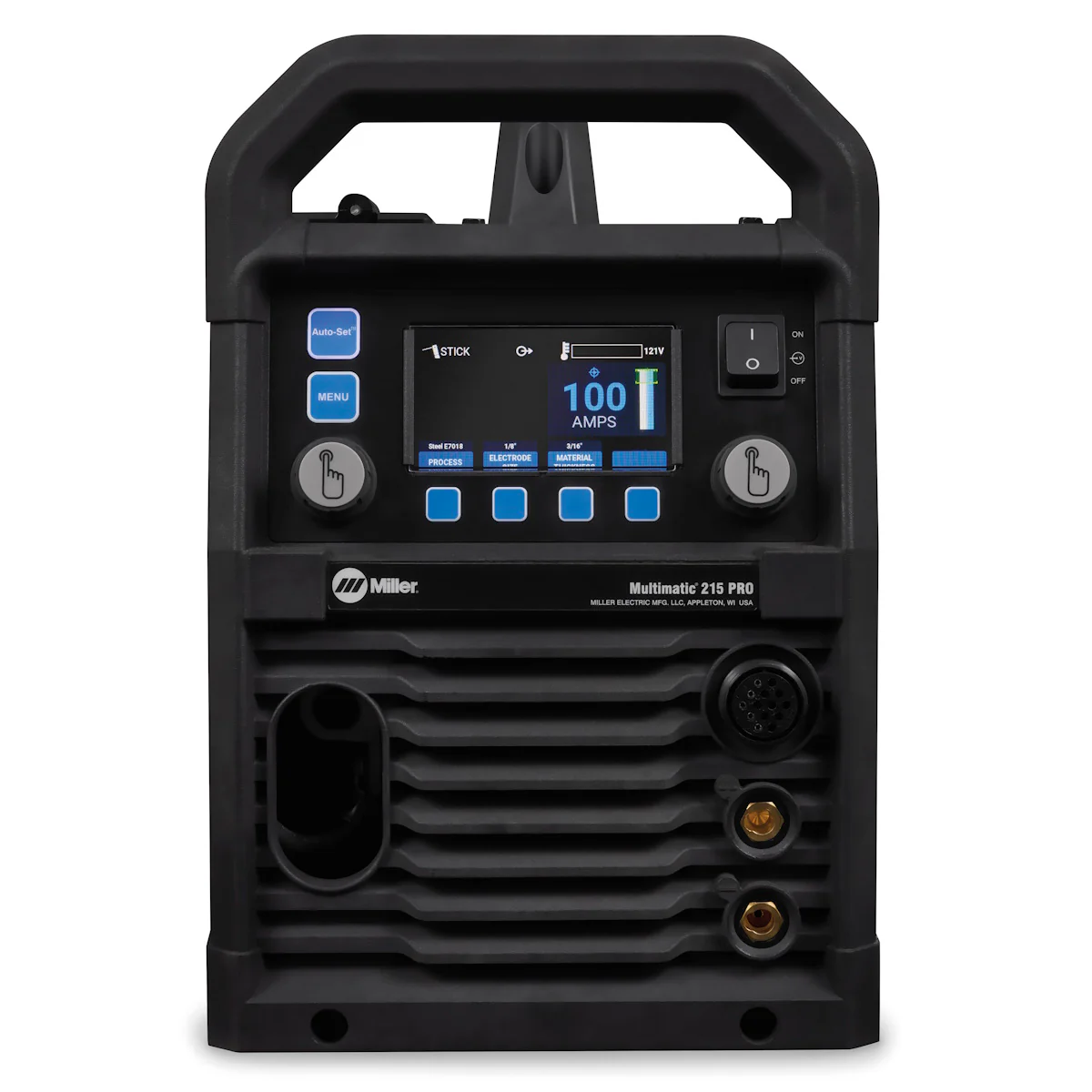

Easy-to-Use Color Screen Interface

Setting up all three processes with the LCD interface is a breeze. The color screen LCD makes setup intuitive across MIG, TIG, and stick, helping users dial in settings quickly and confidently.

Up to 230 Amps of Power

The Miller 215 MIG welder can weld up to 3/8-inch mild steel in a single pass. This MIG welder delivers up to 230 amps, welding 3/8-inch mild steel in a single pass, with a higher duty cycle for extended weld time.

Portable Multi-Process Power for Convenience

At just 35 lbs, this multi-process welder delivers serious output in a compact, portable design ideal for job sites, shops, and garages.

Excellent Arc Characteristics

Extremely stable arc with minimal spatter for less cleanup; Smooth-Start for consistently smooth MIG arc starts. Provides a stable arc with minimal spatter, smoother arc length control, and improved consistency across solid wire and flux-cored wire applications.

Smooth-Feeding Wire Drive System

Enjoy seamless wire feeding and easy wire changes. Features an angled drive with three grooves, a Quick-Select drive roll, and support for different sizes of solid wire and flux-cored wire for consistent feeding.

Multi-Voltage Plug (MVP®) System

Includes MVP plugs for 120V and 240V power receptacles, enabling a quick connection without the need for tools. Simply select the correct plug and connect to the power cord.

Fan-On-Demand™ Cooling

The power source cooling system operates only when needed, thereby reducing noise, energy consumption, and the amount of contaminants drawn through the machine. Reduces noise, energy use, and the amount of contaminants pulled through the machine.

Thermal Overload Protection

Automatically shuts down if airflow is blocked or the duty cycle is exceeded, protecting internal equipment and tools.

Auto Spool Gun Detect™

Automatically detects when a spool gun or MIG gun is connected, enabling fast aluminum welding without the need for manual switches.

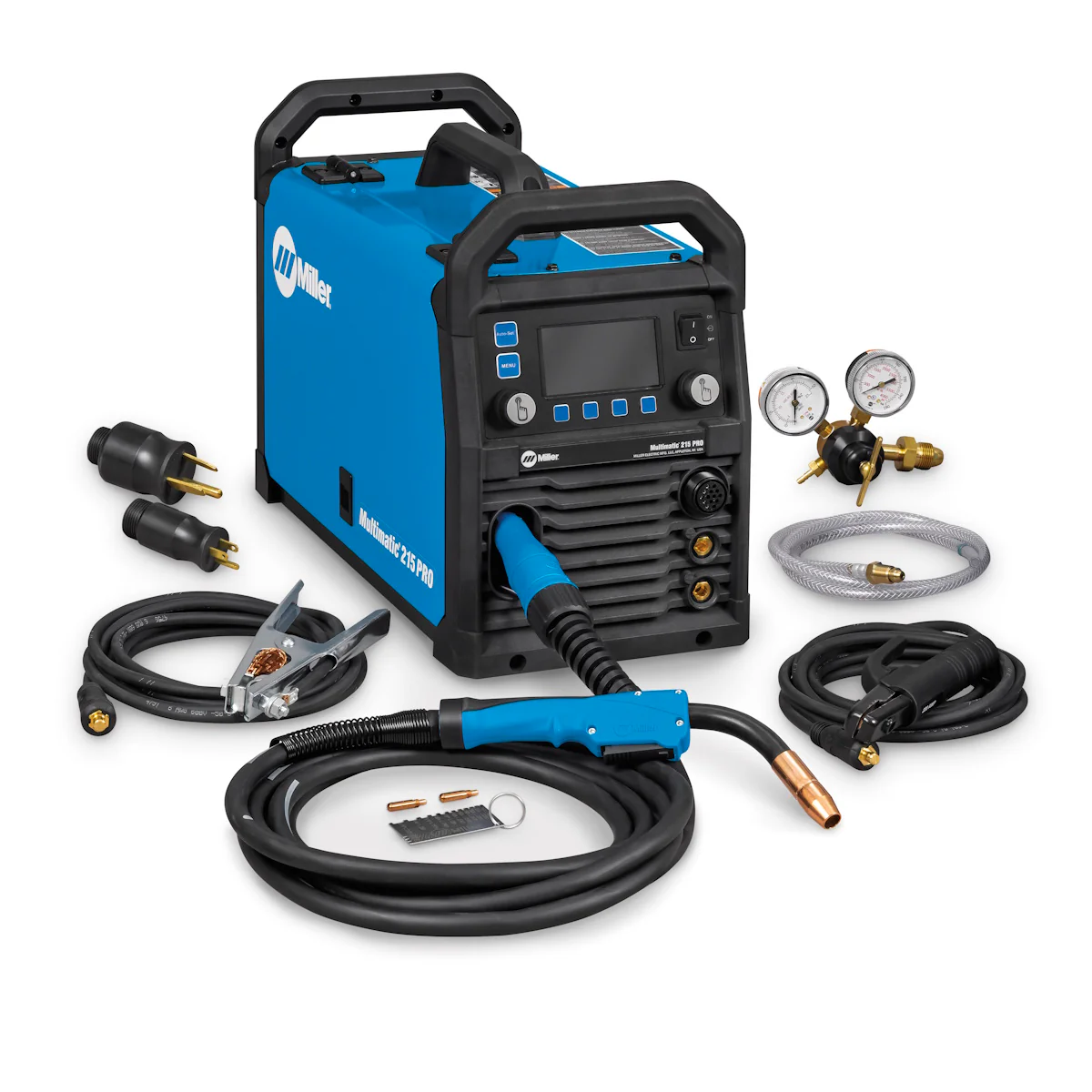

Comes Complete With:

• Power cord and MVP plugs for 120V and 240V
• 15 ft MDX 100 MIG gun and cable assembly (accepts Miller MDX consumables)
• 15 ft electrode holder with Dinse-style connector
• 15 ft work cable and clamp
• Flow gauge regulator and gas hose
• Contact tips for .030 in. wire
• Quick-Select drive roll for solid wire and flux-cored wire
• Material thickness gauge
• Hook-and-loop cord wraps

The Miller 907840 Multimatic 215 PRO multiprocess welder is a versatile welding machine engineered for MIG, TIG, and stick welding across multiple materials, including mild steel and aluminum (MIG). With multi-voltage capability, Auto-Set™, and advanced inverter technology, this Miller welder delivers excellent arc performance, portability, and control for professionals and serious DIY welders alike.

Looking for Your Next Welding Project?

Whether you're just getting started or upgrading your shop, trust the legendary craftsmanship of Miller Electric. Whether you're just getting started or upgrading your welding equipment, explore Miller welders, multi-process welders, MIG welders, TIG welders, and accessories to find the right tools for your next job.

Frequently Asked Questions

What welding processes does the Miller Multimatic 215 PRO support?
The Multimatic 215 PRO is a true multiprocess welder that supports MIG, flux-cored, DC stick, and DC TIG welding. It’s designed to handle a wide range of welding applications across multiple materials.

Can the Multimatic 215 PRO weld aluminum?
Yes, aluminum can be welded using MIG with a compatible spool gun. This machine does not support AC TIG welding, which is required for TIG aluminum applications.

How thick a material can the Multimatic 215 PRO weld?
The Multimatic 215 PRO can weld up to 3/8" mild steel using MIG or DC stick welding, and up to 1/4" material using DC TIG.

Is the Multimatic 215 PRO suitable for home garages and job sites?
Absolutely. With its multi-voltage plug (MVP®) system, the welder operates on both 120V and 240V power, making it ideal for home shops, garages, and professional job sites.

What comes included with the Multimatic 215 PRO?
The machine ships ready to weld and includes a 15-ft MDX 100 MIG gun, electrode holder, work cable and clamp, flow gauge regulator, MVP plugs for 120V and 240V, contact tips, drive roll, material thickness gauge, and cable wraps.
